DTronics DT-DX: Eight DX7s in Your Pocket

There's something appealing about the idea of squeezing eight Yamaha DX7 synthesizers into a box small enough to fit in your backpack. The DTronics DT-DX does exactly that, and while it won't replace a vintage TX816 rack (which originally did the same thing), it brings that multitimbral FM synthesis power to your desktop for a fraction of the cost and space.

Hardware Dexed

The DT-DX is based on the MiniDexed project, which turns the free Dexed FM plugin into hardware using a Raspberry Pi. Dexed itself is an excellent emulation of the Yamaha DX7, offering six operators, seven envelopes, and complete compatibility with original DX-7 and TX-7 SysEx programs.

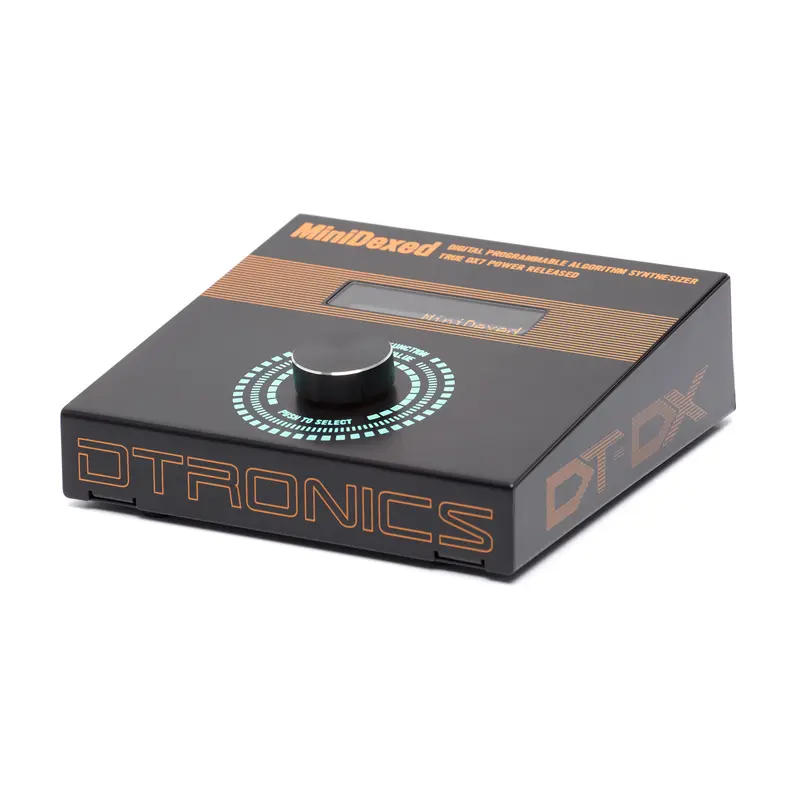

What sets the DT-DX apart from a DIY MiniDexed build is the professional implementation. It comes in a sturdy metal enclosure with a bright orange backlit display, a solid push encoder for navigation, and proper I/O connectors. DTronics essentially took the open-source concept and turned it into a ready-to-use product for those who want the capability without the soldering iron.

Eight Engines, Endless Possibilities

The real power of the DT-DX lies in its multitimbral capability. You can run up to eight independent Dexed instances simultaneously, each with its own voice and settings. These engines respond to different MIDI channels, support program and bank change messages, and can be mixed together at the output stage.

Each instance can be independently detuned and stereo-shifted, creating rich, wide soundscapes. This makes the DT-DX perfect for layering sounds, creating complex pads, or building complete arrangements where different parts play simultaneously - like having an entire FM ensemble in one box.

Sound Shaping and Effects

Beyond the core FM engines, the DT-DX includes built-in reverb and compression effects. While these aren't going to replace dedicated studio processors, they add useful polish to the raw FM tones and help glue multiple instances together.

The 144 parameters per instance give you deep control over each sound. Navigation happens through the single push encoder and orange display, which keeps the interface minimal but functional. It's not as immediate as having a knob-per-function, but for a compact unit, the workflow is reasonable.

Connectivity and Integration

The back panel offers everything you need for modern integration. There's USB power input, a USB host port for connecting MIDI controllers directly, traditional 5-pin MIDI in/out, and stereo line outputs on 6.3mm jacks. The built-in SD card slot lets you load .syx files containing thousands of classic DX7 patches.

The high-quality DAC provides 122 dB dynamic range, ensuring the digital FM tones come through clean and clear. This is important for FM synthesis, where aliasing and digital artifacts can easily muddy the characteristic glass-like quality of the sound.

The Open Source Connection

Because the DT-DX is based on MiniDexed, it benefits from an active open-source community. Firmware updates add new features and improvements, and the compatibility with standard DX7 patch libraries means you have access to decades worth of sounds created by the FM synthesis community.

The collaboration with Probonopd, the creator of MiniDexed, ensures that the hardware implementation stays true to the original DX7 engine characteristics. This isn't a cheap approximation - it's a faithful recreation that captures the magic of the original Yamaha FM synthesis.

Who Is This For?

The DT-DX offers serious value for FM synthesis enthusiasts. It's ideal for producers who want classic DX7 sounds without the maintenance headaches of vintage hardware, keyboard players needing multitimbral FM for live performance, or anyone building a compact studio where space is at a premium.

The compact dimensions (150×50×155mm) and light weight (700g) make it genuinely portable. You could easily pack this in a bag for mobile music-making or bring it to a jam session without the usual concerns about transporting vintage gear.

Bottom Line

The DTronics DT-DX proves that open-source hardware projects can evolve into polished commercial products. It takes the powerful MiniDexed platform and packages it in a form that's ready to use out of the box. While it might not have the vintage appeal of an original TX816, it delivers the same multitimbral FM synthesis capability in a modern, affordable, and space-efficient package.

For anyone who's ever wanted multiple DX7 engines working together, the DT-DX makes that dream surprisingly accessible.
